Industrial Electrostatic CNC Oil Mist Collector Purifier Smoke Dust Air Cleaner
Features
1. The efficient and durable filter efficiency is especially suitable for the purification of a large number of small smoke produced by pure oil cutting.
2. The energy consumption of the Electrostatic CNC Smoke Dust Air Cleaner is much lower than that of the other equipment of the same kind, power consumption is the 1/5 of other equipment.
3.Oil Mist Collector Equipment only needs daily cleaning and maintenance, long-term use of no consumables, no subsequent use cost
4.Oil Mist Collector Purifier used for all kinds of machine tools, such as high efficiency CNC machine tool, high efficiency gear machining machine tool and so on, can be captured less than 0.1um particle oil smoke and oil mist.
5.The capture efficiency is above 95%, and the purification efficiency is above 99%
6.Easy to install, each purifier can be installed directly on the machine tool, on the support, easy to install and dismantle.
7.Maintenance is simple and safe. Even if the hose is connected, the filter can be replaced. The fan impeller is not exposed, and the maintenance is safe

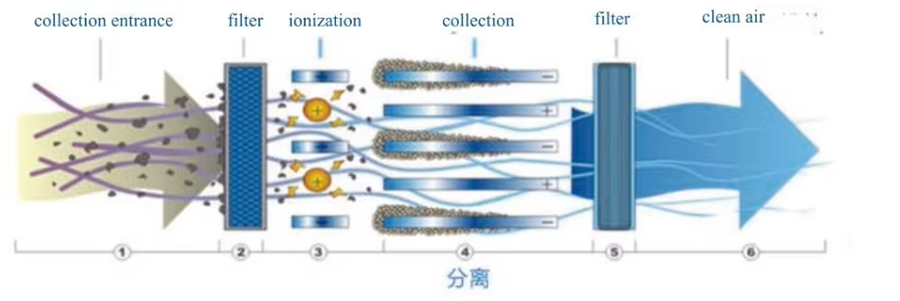

Working principle
Paramete
|
Electrostatic Oil Mist Purifier |
||
|
Model |
LJ-1000P |
LJ-1500P |
|
Power |
180W |
260W |
|
Voltage |
220V |
220V |
|
Air volume |
1000m³/h |
1500m³/h |
|
Inlet diameter |
150mm |
150mm |
|
Weight |
58kg |
72kg |
|
Dimension |
730*560*490 |
850*640*520 |
