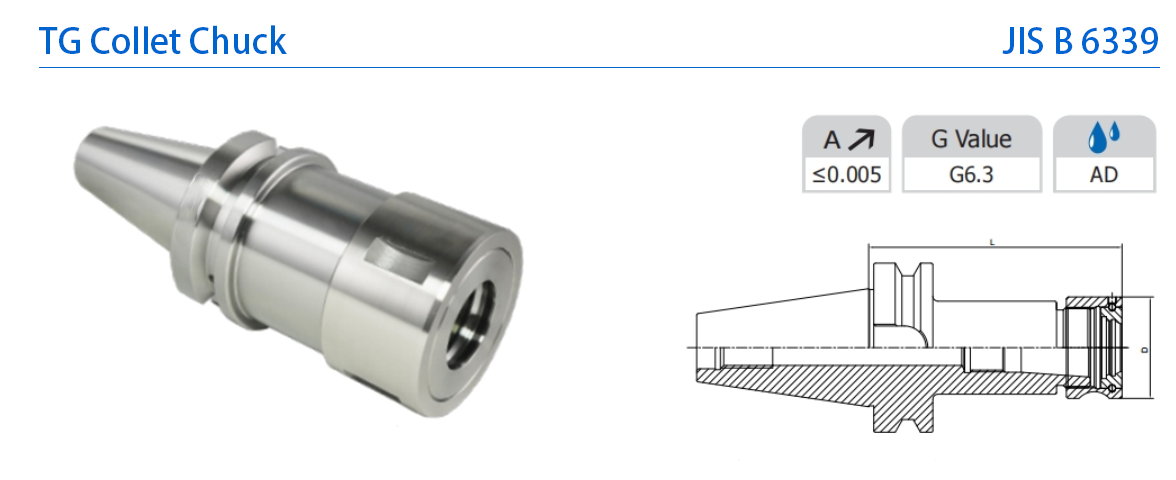

BT TG Collet Chuck

The TG collet chuck features a ball-bearing nut that increases clamping force by 75%, making it suitable for heavy-duty machining.

Minimum order quantity: 10 pcs (mixed models acceptable)

GET A QUOT

product details

Product Parameters

Size	D	D1	L	Collet	Capacity
BT30-TG75-70	44.45	50	70	TG 75	2-20
BT30-TG75-100	44.45	50	100	TG 75	2-20
BT30-TG100-100	55	60	100	TG 100	3-25

BT40-TG75-70	44.45	50	70	TG 75	2-20
BT40-TG100-80	55	60	80	TG 100	3-25
BT40-TG100-100	55	60	100	TG 100	3-25
BT40-TG100-150	55	60	150	TG 100	3-25

BT50-TG100-90	55	60	90	TG 100	3-25
BT50-TG100-150	55	60	150	TG 100	3-25
