BT FMB Face Mill Holder

Made of 40Cr steel with high hardness; all products are fully inspected and feature a fully bright surface finish.
Each FMB face mill arbor is supplied with screws and a drive key for easy mounting of face milling cutters.
Small-diameter cutter connection uses a single central screw for clamping.
Large-diameter cutter connection uses a four-hole flange screw fastening system.

Minimum order quantity: 10 pcs (mixed models acceptable)

GET A QUOT

product details

Product Parameters

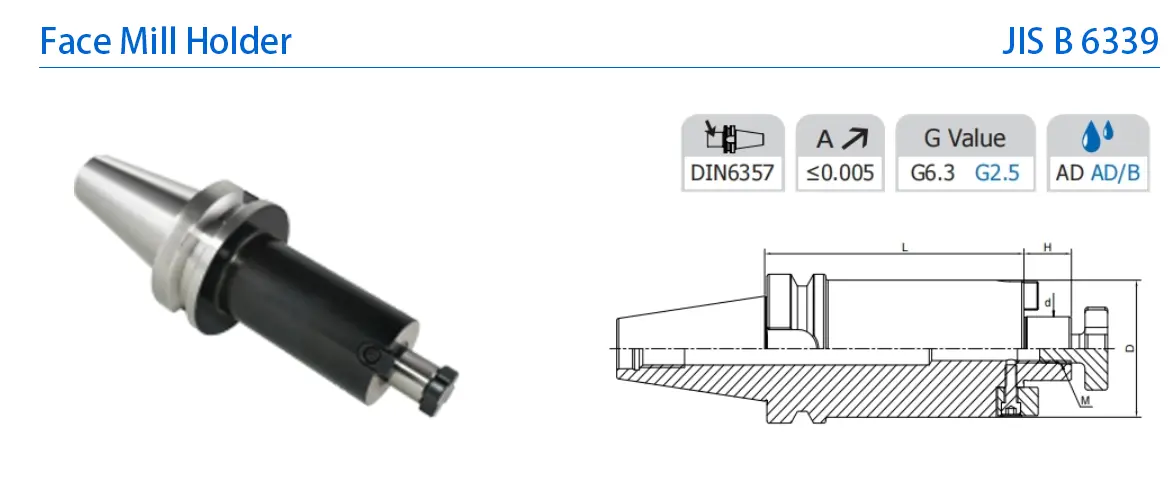

Size	d	L	D	H	M
BT30-FMB16-40	16	40	38	17	M8
BT30-FMB22-40	22	40	48	19	M10
BT30-FMB27-40	27	40	58	21	M12
BT30-FMB32-50	32	50	78	24	M16

BT40-FMB16-40	16	40	38	17	M8
BT40-FMB22-40	22	40	48	19	M10
BT40-FMB27-40	27	40	58	21	M12
BT40-FMB32-50	32	50	78	24	M16
BT40-FMB40-50	40	50	88	27	M20

BT40-FMB22-60	22	60	48	19	M10
BT40-FMB27-60	27	60	58	21	M12
BT40-FMB32-60	32	60	78	24	M16
BT40-FMB40-60	40	60	88	27	M20

BT40-FMB16-100	16	100	38	17	M8
BT40-FMB22-100	22	100	48	19	M10
BT40-FMB27-100	27	100	58	21	M12
BT40-FMB32-100	32	100	78	24	M16
BT40-FMB40-100	40	100	88	27	M20

BT40-FMB16-160	16	160	38	17	M8
BT40-FMB22-160	22	160	48	19	M10
BT40-FMB27-160	27	160	58	21	M12
BT40-FMB32-160	32	160	78	24	M16
BT40-FMB40-160	40	160	88	27	M20
BT40-FMB22-200	22	200	48	19	M10
BT40-FMB27-200	27	200	58	21	M12
BT40-FMB32-200	32	200	78	24	M16
BT40-FMB40-200	40	200	88	27	M20

BT40-FMB22-250	22	250	48	19	M10
BT40-FMB22-300	22	300	48	19	M10

BT50-FMB16-40	16	40	38	17	M8
BT50-FMB22-40	22	40	48	19	M10
BT50-FMB27-40	27	40	58	21	M12
BT50-FMB32-50	32	50	78	24	M16
BT50-FMB40-50	40	50	88	27	M20
BT50-FMB60-75	60	75	129	25	M30

BT50-FMB22-60	22	60	48	19	M10
BT50-FMB27-60	27	60	58	21	M12
BT50-FMB32-60	32	60	78	24	M16
BT50-FMB40-60	40	60	88	27	M20


BT50-FMB16-100	16	100	38	17	M8
BT50-FMB22-100	22	100	48	19	M10
BT50-FMB27-100	27	100	58	21	M12
BT50-FMB32-100	32	100	78	24	M16
BT50-FMB40-100	40	100	88	27	M20

BT50-FMB22-160	22	160	48	19	M10
BT50-FMB27-160	27	160	58	21	M12
BT50-FMB32-160	32	160	78	24	M16
BT50-FMB40-160	40	160	88	27	M20

BT50-FMB22-200	22	200	48	19	M10
BT50-FMB27-200	27	200	58	21	M12
BT50-FMB32-200	32	200	78	24	M16
BT50-FMB40-200	40	200	88	27	M20

BT50-FMB22-250	22	250	48	19	M10
BT50-FMB27-250	27	250	58	21	M12
BT50-FMB32-250	32	250	78	24	M16
BT50-FMB40-250	40	250	88	27	M20

BT50-FMB22-300	22	300	48	19	M10
BT50-FMB27-300	27	300	58	21	M12
BT50-FMB32-300	32	300	78	24	M16
BT50-FMB40-300	40	300	88	27	M20

BT50-FMB22-100(D=60)	22	100	60	19	M10
BT50-FMB22-150/160(D=60)	22	150	60	19	M10
BT50-FMB22-200(D=60)	22	200	60	19	M10
BT50-FMB22-250(D=60)	22	250	60	19	M10
BT50-FMB22-300(D=60)	22	300	60	19	M10

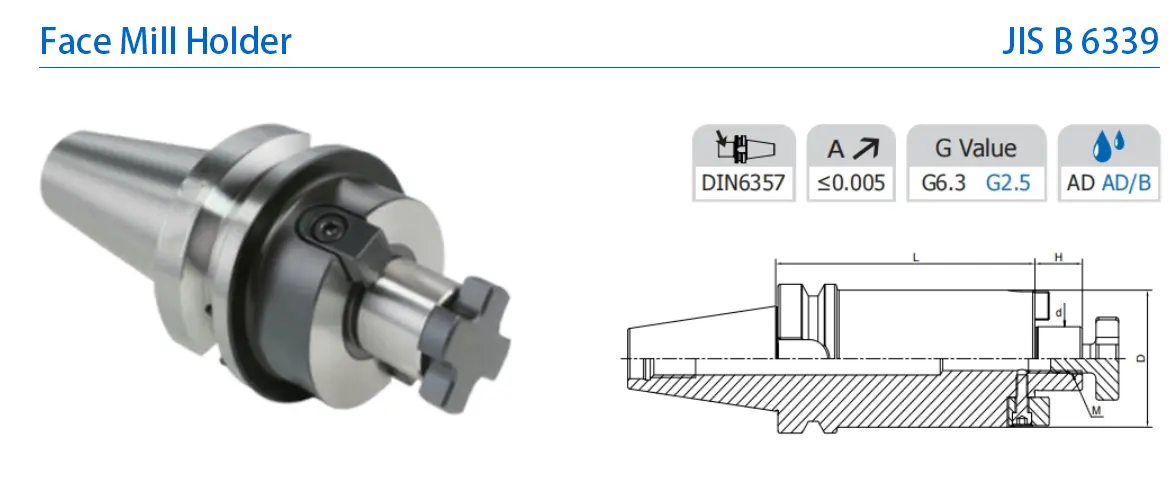

Size	d	L	D	H	M
BBT40-FMB16-40	16	40	38	17	M8
BBT40-FMB22-40	22	40	48	19	M10
BBT40-FMB27-40	27	40	58	21	M12
BBT40-FMB32-50	32	50	78	24	M16

BBT40-FMB22-60	22	60	48	19	M10
BBT40-FMB27-60	27	60	58	21	M12
BBT40-FMB32-60	32	60	78	24	M16

BBT40-FMB16-100	16	100	38	17	M8
BBT40-FMB22-100	22	100	48	19	M10
BBT40-FMB27-100	27	100	58	21	M12
BBT40-FMB32-100	32	100	78	24	M16

BBT50-FMB16-40	16	40	38	17	M8
BBT50-FMB22-40	22	40	48	19	M10
BBT50-FMB27-40	27	40	58	21	M12
BBT50-FMB32-50	32	50	78	24	M16

BBT50-FMB22-60	22	60	48	19	M10
BBT50-FMB27-60	27	60	58	21	M12
BBT50-FMB32-60	32	60	78	24	M16

BBT50-FMB16-100	16	100	38	17	M8
BBT50-FMB22-100	22	100	48	19	M10
BBT50-FMB27-100	27	100	58	21	M12
BBT50-FMB32-100	32	100	78	24	M16

BBT50-FMB22-160	22	160	48	19	M10
BBT50-FMB27-160	27	160	58	21	M12
BBT50-FMB32-160	32	160	78	24	M16

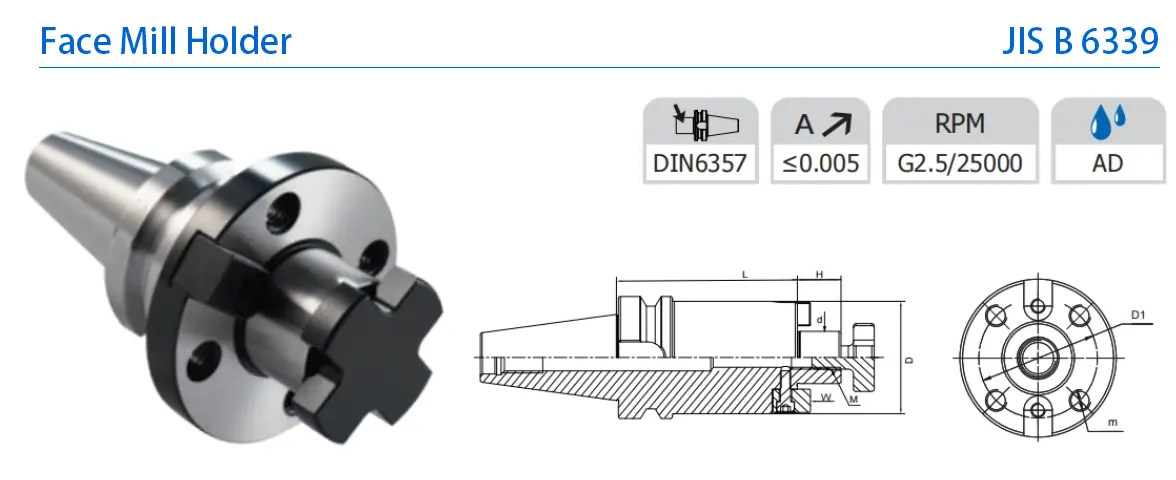

Size	d	L	D	D2	H	M	m
BBT40-FMB40-50	40	50	88	66.7	27	M20	M12
BBT40-FMB40-100	40	100	88	66.7	27	M20	M12

BBT50-FMB40-50	40	50	88	66.7	27	M20	M12
BBT50-FMB40-100	40	100	88	66.7	27	M20	M12
