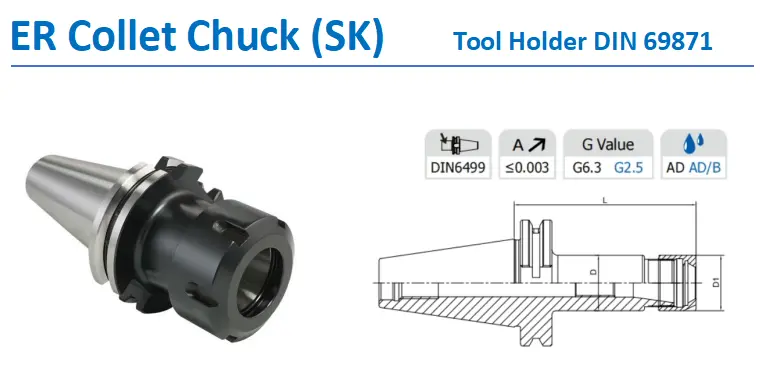

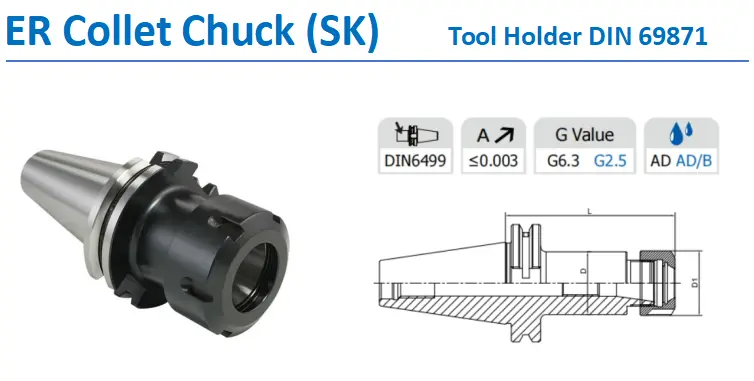

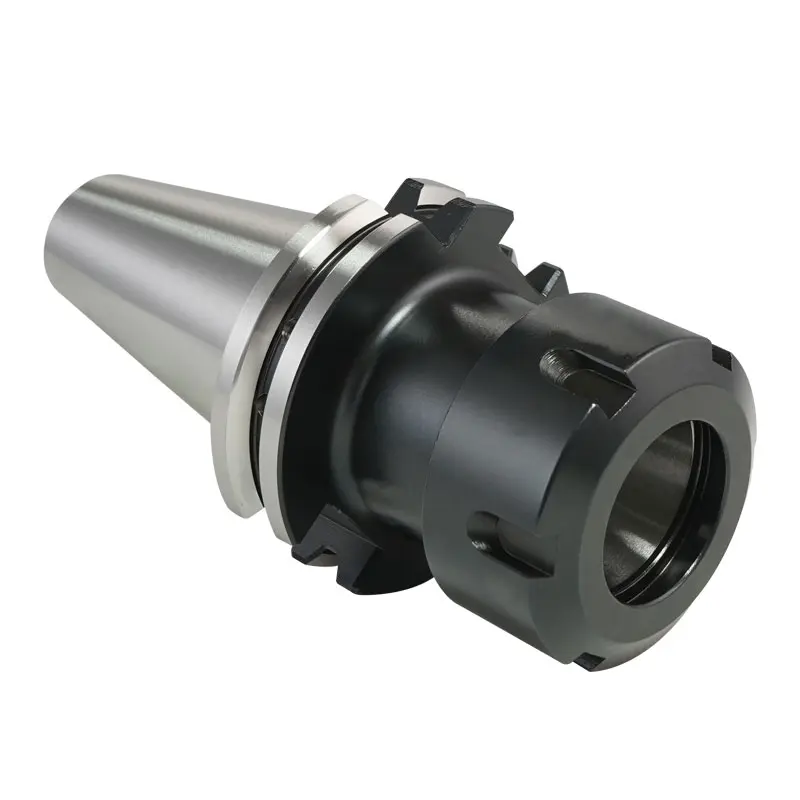

ER Collet Chuck-SK
Product Parameters
Size |
D |
D1 |
L |
Capacity |
SK30-ER16UM-70 |
28 |
32 |
70 |
3-10 |
SK30-ER20UM-70 |
34 |
35 |
70 |
3-10 |
SK30-ER25-70 |
32 |
42 |
70 |
3-10 |
SK30-ER32-70 |
40 |
50 |
70 |
3-10 |
SK30-ER40-70 |
50 |
63 |
70 |
3-10 |
SK30-ER16UM-100 |
28 |
32 |
100 |
4-9 |
SK30-ER20UM-100 |
34 |
35 |
100 |
4-9 |
SK30-ER25-100 |
42 |
42 |
100 |
4-9 |
SK30-ER32-100 |
50 |
50 |
100 |
4-9 |
|
|
|
|
|
SK40-ER16UM-63 |
28 |
32 |
63 |
3-3 |
SK40-ER20UM-70 |
34 |
35 |
70 |
3-10 |
SK40-ER25-70 |
42 |
42 |
70 |
3-10 |
SK40-ER32-70 |
40 |
50 |
70 |
3-10 |
SK40-ER40-80 |
63 |
63 |
80 |
3-20 |
SK40-ER16UM-100 |
28 |
32 |
100 |
4-9 |
SK40-ER20UM-100 |
34 |
35 |
100 |
4-9 |
SK40-ER25-100 |
42 |
42 |
100 |
4-9 |
SK40-ER32-100 |
50 |
50 |
100 |
4-9 |
SK40-ER40-100 |
63 |
63 |
100 |
4-9 |
SK40-ER40-120 |
63 |
63 |
120 |
4-29 |
SK40-ER16UM-160 |
28 |
32 |
160 |
6-8 |
SK40-ER20UM-160 |
34 |
35 |
160 |
6-8 |
SK40-ER25-160 |
42 |
42 |
160 |
6-8 |
SK40-ER32-160 |
50 |
50 |
160 |
6-8 |
SK40-ER40-160 |
63 |
63 |
160 |
6-8 |
SK40-ER16UM-200 |
28 |
32 |
200 |
7-18 |
SK40-ER20UM-200 |
34 |
35 |
200 |
7-18 |
SK40-ER25-200 |
42 |
42 |
200 |
7-18 |
SK40-ER32-200 |
50 |
50 |
200 |
7-18 |
SK40-ER40-200 |
50 |
63 |
200 |
7-18 |
|
|
|
|
|
SK50-ER16UM-70 |
28 |
32 |
70 |
3-10 |
SK50-ER20UM-70 |
34 |
35 |
70 |
3-10 |
SK50-ER25-60 |
42 |
42 |
60 |
2-29 |
SK50-ER32-70 |
50 |
50 |
70 |
3-10 |
SK50-ER40-80 |
63 |
63 |
80 |
3-20 |
SK50-ER50-100 |
100 |
78 |
100 |
4-9 |
|
|
|
|
|
SK50-ER16UM-100 |
28 |
32 |
100 |
4-9 |
SK50-ER20UM-100 |
34 |
35 |
100 |
4-9 |
SK50-ER25-100 |
42 |
42 |
100 |
4-9 |
SK50-ER32-100 |
50 |
50 |
100 |
4-9 |
SK50-ER40-100 |
63 |
63 |
100 |
4-9 |
|
|
|
|
|
SK50-ER16UM-160 |
28 |
32 |
160 |
6-8 |
SK50-ER20UM-160 |
34 |
35 |
160 |
6-8 |
SK50-ER25-160 |
42 |
42 |
160 |
6-8 |
SK50-ER32-160 |
50 |
50 |
160 |
6-8 |
SK50-ER40-160 |
63 |
63 |
160 |
6-8 |
|
|
|
|
|
SK50-ER16UM-200 |
28 |
32 |
200 |
7-18 |
SK50-ER20UM-200 |
34 |
35 |
200 |
7-18 |
SK50-ER25-200 |
42 |
42 |
200 |
7-18 |
SK50-ER32-200 |
50 |
50 |
200 |
7-18 |
SK50-ER40-200 |
63 |
63 |
200 |
7-18 |
Product Parameters
Size |
D |
D1 |
L |
Capacity |
SK30-ER16A-70 |
28 |
28 |
70 |
3-10 |
SK30-ER20A-70 |
34 |
34 |
70 |
3-10 |
SK30-ER16A-100 |
28 |
28 |
100 |
4-9 |
SK30-ER20A-100 |
34 |
34 |
100 |
4-9 |
|
|
|
|
|
SK40-ER16A-63 |
28 |
28 |
63 |
3-3 |
SK40-ER20A-70 |
34 |
34 |
70 |
3-10 |
SK40-ER16A-100 |
28 |
28 |
100 |
4-9 |
SK40-ER20A-100 |
34 |
34 |
100 |
4-9 |
SK40-ER16A-160T |
28 |
28 |
160 |
6-8 |
SK40-ER20A-160 |
34 |
34 |
160 |
6-8 |
SK40-ER16A-200T |
28 |
28 |
200 |
7-18 |
SK40-ER20A-200 |
34 |
34 |
200 |
7-18 |
|
|
|
|
|
SK50-ER16A-70 |
28 |
28 |
70 |
3-10 |
SK50-ER20A-70 |
34 |
34 |
70 |
3-10 |
SK50-ER16A-100 |
28 |
28 |
100 |
4-9 |
SK50-ER20A-100 |
34 |
34 |
100 |
4-9 |
SK50-ER16A-160T |
28 |
28 |
160 |
6-8 |
SK50-ER20A-160 |
34 |
34 |
160 |
6-8 |
SK50-ER16A-200T |
28 |
28 |
200 |
7-18 |
SK50-ER20A-200 |
34 |
34 |
200 |
7-18 |
Product Parameters
Size |
D |
D1 |
L |
Capacity |
SK40-ER11M-70 |
16 |
16 |
70 |
3-10 |
SK40-ER16M-70 |
22 |
22 |
70 |
3-10 |
SK40-ER20M-70 |
28 |
28 |
70 |
3-10 |
SK40-ER25M-70 |
35 |
35 |
70 |
3-10 |
|
|
|
|
|
SK40-ER11M-100 |
16 |
16 |
100 |
4-9 |
SK40-ER16M-100 |
22 |
22 |
100 |
4-9 |
SK40-ER20M-100 |
28 |
28 |
100 |
4-9 |
SK40-ER25M-100 |
35 |
35 |
100 |
4-9 |
|
|
|
|
|
SK40-ER11M-160T |
16 |
16 |
160 |
6-8 |
SK40-ER16M-160T |
22 |
22 |
160 |
6-8 |
SK40-ER20M-160 |
28 |
28 |
160 |
6-8 |
SK40-ER25M-160 |
35 |
35 |
160 |
6-8 |
|
|
|
|
|
SK50-ER16M-70 |
22 |
22 |
70 |
3-10 |
SK50-ER20M-70 |
28 |
28 |
70 |
3-10 |
SK50-ER25M-70 |
35 |
35 |
70 |
3-10 |
|
|
|
|
|
SK50-ER16M-100 |
22 |
22 |
100 |
4-9 |
SK50-ER20M-100 |
28 |
28 |
100 |
4-9 |
SK50-ER25M-100 |
35 |
35 |
100 |
4-9 |
|
|
|
|
|
SK50-ER16M-160T |
22 |
22 |
160 |
6-8 |
SK50-ER20M-160 |
28 |
28 |
160 |
6-8 |
SK50-ER25M-160 |
35 |
35 |
160 |
6-8 |
