SK Hydraulic Chuck, For Mould

Hydraulic tool holders are highly effective for reaming, drilling, threading, and light milling operations with end mills at high spindle speeds. They use hydraulic pressure to compress an internal membrane inside the holder body, applying uniform high pressure 360° around the shank. This ensures low and repeatable runout—maximum 3 µm at 3xD (or 6 µm at 3xD for cylindrical shanks).

They are extremely user-friendly, requiring only a single screw to clamp the tool, with no additional equipment needed. Hydraulic tool holders deliver excellent and consistent runout performance.

Minimum order quantity: 5 pcs (mixed models acceptable)

GET A QUOT

product details

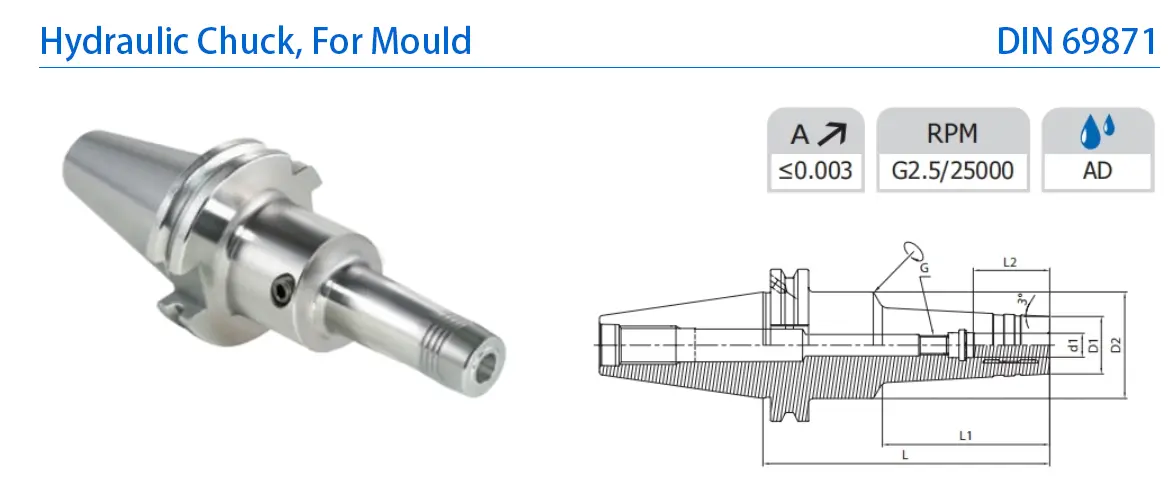

Product Parameters

Size	d1	D1	D2	L	L1	L2	G
SK40-HYM6-120	6	20	49.5	120	70	27	M5
SK40-HYM6-150	6	20	49.5	150	100	27	M5
SK40-HYM8-120	8	22	49.5	120	70	27	M6
SK40-HYM8-150	8	22	49.5	150	100	27	M6
SK40-HYM10-120	10	24	44.5	120	70	32	M8×1
SK40-HYM10-150	10	24	44.5	150	100	32	M8×1
SK40-HYM12-120	12	25	44.5	120	70	37	M10×1
SK40-HYM12-150	12	25	44.5	150	100	37	M10×1
SK40-HYM16-120	16	32	49.5	120	70	42	M12×1
SK40-HYM16-150	16	32	49.5	150	100	42	M12×1
SK40-HYM20-120	20	34	49.5	120	70	42	M16×1
SK40-HYM20-150	20	34	49.5	150	100	42	M16×1

SK50-HYM6-150	6	20	44.5	150	100	27	M5
SK50-HYM8-150	8	22	44.5	150	100	27	M6
SK50-HYM10-150	10	24	44.5	150	100	32	M8×1
SK50-HYM12-150	12	25	44.5	150	100	37	M10×1
SK50-HYM16-150	16	32	44.5	150	100	42	M12×1
SK50-HYM20-150	20	34	44.5	150	100	42	M16×1
